Competition timing set - comfort with cascade for athletics track events ZPCP14-K

This equipment is no longer supplied. Please search through the catalog for analogues.

Article: competition—timing—set———comfort—with—cascade—for—athletics—track—events—zpcp14—k


Made in: EU

Model: ZPCP14—K

Category: Timing and scoring systems for athletics

Technicals Features:

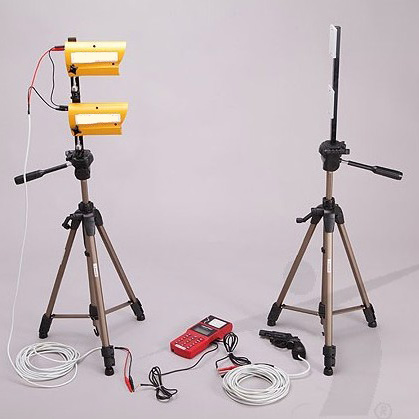

ZPCP14—K comfort set with cascade is the timing system enriched with an additional photocell. It is significantly more accurate than the set with one photocell, because the time of the competitor is recorded when two infrared beams are tripped at the same time. The set measures the times with the resolution up to 1/1000 s. The shot from the staring revolver initiates the timing of the chronometer which can record up to 2000 results. Thanks to the thermal printer of the chronometer the results can be printed out. The set contains:
a) FP sports photocell = 2 sets
b) LFP—2 photocell double mirror = 1 pc
c) UFP—2 cascade tripod holder = 1 pcs
d) ST tripod = 2 pcs
e) RS—START9 starting revolver with impulse wire = 1 pc
f) CHR chronometer with printer = 1 set
g) PNB—150 start signal cable 150 m on spool = 1 pc

FP sports photocell is an accurate sports device. Its casing consists of two main elements: a transmitter and a receiver. The set also comes with two AA rechargeable batteries, AC charger and cables. Selected technical features:
-impulse delay below 1 ms
-guaranteed range up to 15 m
-temperature range -20°C +70°C.

LFP-2 photocell double mirror reflects photocell infrared beams.

UFP-2 cascade holder lets you mount 2 sports photocells (one beneath the other) on the tripod.

ST tripod positions stably sports photocells and double mirror in required location.

RS-START9 starting revolver with impulse wire is an alarm signal gun. It uses long blank side ignition cartridges, calibre .22, and holds 9 rounds. It is equipped with the mechanical device that starts the timing system.

CHR chronometer with printer lets you record the times and then print them. The set includes: transport bag, chronometer main unit, mini CD with standard system software, rolls of thermal paper (2 units), power adaptor, alkaline batteries 1.5V 1500 mAH type AA (4 units), start & stop connection cables, PC connection cable and PC adaptor.

PNB-150 start signal cable 150 m on spool lets you connect the revolver to the chronometer.
