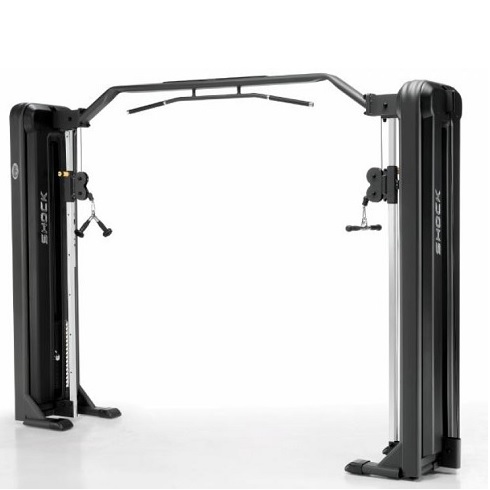

Single pulley cross over

Article: AVTJ3014

Length: 3346 mm.

Wide. 570 mm.

Height: 2335 mm.

Weight: 307 Kg

Main frame: Steel tube of 120x50x2mm OVAL. and 100x50x2 mm.

Pictogram instructions included.
Label Warning signs and safety of use.
Needle selection of the weights of aluminum magnet to prevent falling when performing the exercises and spiral wire to prevent their loss.
Cable traction weights: Steel in a 7x19 configuration with 3 +1 mm. in diameter and coated with polyamide to 4 mm. with a breaking strength of 560 K.
Pulleys: Made of polypropylene, double sealed bearings and precision ground to ensure long life of the cables, smooth movement and maximum durability.
Fairings: Cowl of the towers where the weights on ABS to improve the appearance and increase safety.
Safety: Machine manufactured under UNE-EN 957.1 and 957.2
Plates or weights, gauge steel, polyamide caps have a smoother operation and avoid noise in the exercise.
Cargo Two exits for junction 80 +80 K. Biceps and also Triceps. (chrome)
Painting: Metal parts undergo degreasing and phosphate tunnel, then passes through an electrostatic paint booth and painted with polyester powder paint. Passed through an oven for curing at 220°.
Made in EU.

Add to your inquiry to the project manager

Another sports equipment from category

5 Station pulley cross over 5 Station pulley cross over

Article: AVTJ3010
Long. 4689 mm.
Wide. 2276 mm.
Height: 2335 mm.
Weight: 770 Kg
Main frame: Steel tube of 120x50x2mm OVAL. and 100x50x2 mm.

Lateral deltoids Lateral deltoids

Article: AVTJ3008
Length: 1159 mm.
Wide. 1023 mm.
Height: 1505 mm.
Weight: 186 Kg
Main frame: Steel tube of 120x50x2mm OVAL. and 100x50x2 mm.

Shoulder press Shoulder press

Article: AVTJ3007
Length: 1829 mm.
Width: 1543 mm.
Height: 1505 mm.
Weight: 180 Kg
Main frame: Steel tube of 120x50x2mm OVAL. and 100x50x2 mm.
