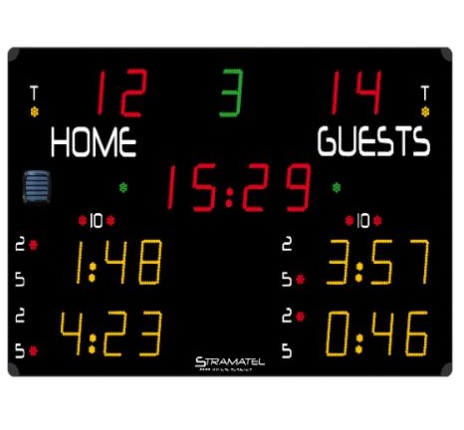

Ice hockey scoreboard 452 GE 9000
Article: AVSR1049
Use: Indoor – tropicalized electronic parts for ice rink atmosphere
Transmission: Radio (868 MHz) or cable
Readability: 60m, angle >160°
Dimensions: 1900 x 1150 x 90mm
Weight: 35 kg
Power supply: 230V / 50-60Hz
Protection: Unbreakable mat polycarbonate front face (DIN 18032-3)
Integrated Horn: 116dB at 1m
Mains cable: 25 m – Type: 230V, 3G, 0.75 mmІ
DISPLAY FUNCTIONS:
Score: 2 x 2 red LED digits (16 cm)
Period: 1 green LED digit (15 cm)
Time stop indicator: 2 x 1 green LED dot
Timer/Rest period: 4 red LED digits (16 cm) + blinking points
Time out indicator: 2 x 1 yellow LED dot
Exclusions timers: 4 x 3 yellow LED digits (15cm)
Penalty indicators: 12 red LED dots (2’ , 5’ and misconduct 10’)
Supported sports: ice hockey
Made in EU.
Another sports equipment from category
Judo scoreboard CJF
Article:AVSR1062
Use : Indoor
Transmission : Radio or cable controlled
Readability : 60 m, angle >160°
Dimensions : 2000 x 1000 x 90 mm
Weight : 34kgs + 9Kgs (wheel stand)
Power supply: 230v/60 Hz
Protection : Unbreakable mat polycarbonate front face (DIN 18032—3)
Integrated horn : 100 dB at 1 m
Multisport scoreboard 452 MD 7020-2
Article:AVSR1042
Dimensions: 2700 x 1300 x 90 mm
Weight: 54 Kg
Digit height: 20 and 16 cm
Distance of readability: 90 m
Angle of readability: 160°
Display: LEDs (SMD)
Team names: non Editable
Player number: 2 yellow LED digits (6 cm) per player (12)
FIBA approved
Multisport scoreboard 452 MS 7000
Article:AVSR1029
Use : Indoor
Transmission : Radio (868 MHz) or cable
Readability : 60m, angle >160°
Dimensions : 1500 x 1000 x 90mm
Weight : 24 kg
Power supply : 230V / 50—60Hz
Power consumed: 74 VA
Protection : Unbreakable mat polycarbonate front face (DIN 18032—3)
Integrated Horn : 116dB at 1m
Mains cable (supplied) : 25 m – Typ: 230V, 3G, 0.75 mm
