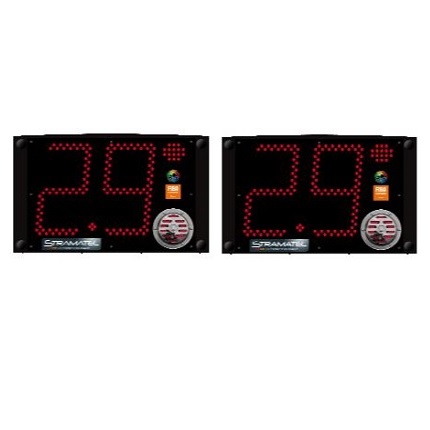

Basketball shot clocks SC24

Article: AVSR1025

Use: Indoor

Transmission : Radio (868 MHz) or cable – work ONLY with STRAMATEL main scoreboard

Readability : 100m, angle >160°

Dimensions : 500 x 300 x 65 mm

Weight : 2,5 kg per unit

Power supply : 230V / 50-60Hz

Power consumed: 33 VA

Protection : Unbreakable mat polycarbonate front face (DIN 18032-3)

Integrated Horn : 96dB at 1m

Mains cable (supplied) : 2 x 25 m – Typ: 230V, 3G, 0.75 mm²



FUNCTIONS:

24/14 second attack timer: 2 red LED digits (23 cm) per display
Timer Stop: 1 red LED dot (5 cm) per display
10th second display: 1 red dot per display between the 2 digits => Display of the 10th of seconds during the last 5 seconds
FIBA approved for competitions level 3.
Made in EU.

Add to your inquiry to the project manager

Another sports equipment from category

Multisport scoreboard 452 MS 7020-2 Multisport scoreboard 452 MS 7020-2

Article:AVSR1009
Use: Indoor
Transmission: Radio (868 MHz) or cable
Readability: 60m, angle >160°
Dimensions: 2700 x 1300 x 90mm
Weight: 53kg
Power supply: 230V / 50—60Hz
Power consumed: 113VA
Protection: Unbreakable mat polycarbonate front face (DIN 18032—3)
Integrated Horn: 116dB at 1m
Mains cable: 25 m – Type: 230V, 3G, 0.75 mmІ

Judo scoreboard CJF Judo scoreboard CJF

Article:AVSR1062
Use : Indoor
Transmission : Radio or cable controlled
Readability : 60 m, angle >160°
Dimensions : 2000 x 1000 x 90 mm
Weight : 34kgs + 9Kgs (wheel stand)
Power supply: 230v/60 Hz
Protection : Unbreakable mat polycarbonate front face (DIN 18032—3)
Integrated horn : 100 dB at 1 m

Ice hockey scoreboard 452 GB 9020-2 Ice hockey scoreboard 452 GB 9020-2

Article:AVSR1053
Use: Indoor – tropicalized electronic parts for ice rink atmosphere
Transmission: Radio (868 MHz) or cable
Readability: 110m, angle >160°
Dimensions: 4900 x 1150 x 90mm
Weight: 90 kg
Power supply: 230V / 50—60Hz
Protection: Unbreakable mat polycarbonate front face (DIN 18032—3)
Integrated Horn: 116dB at 1m
Mains cable: 25 m – Type: 230V, 3G, 0.75 mmІ
