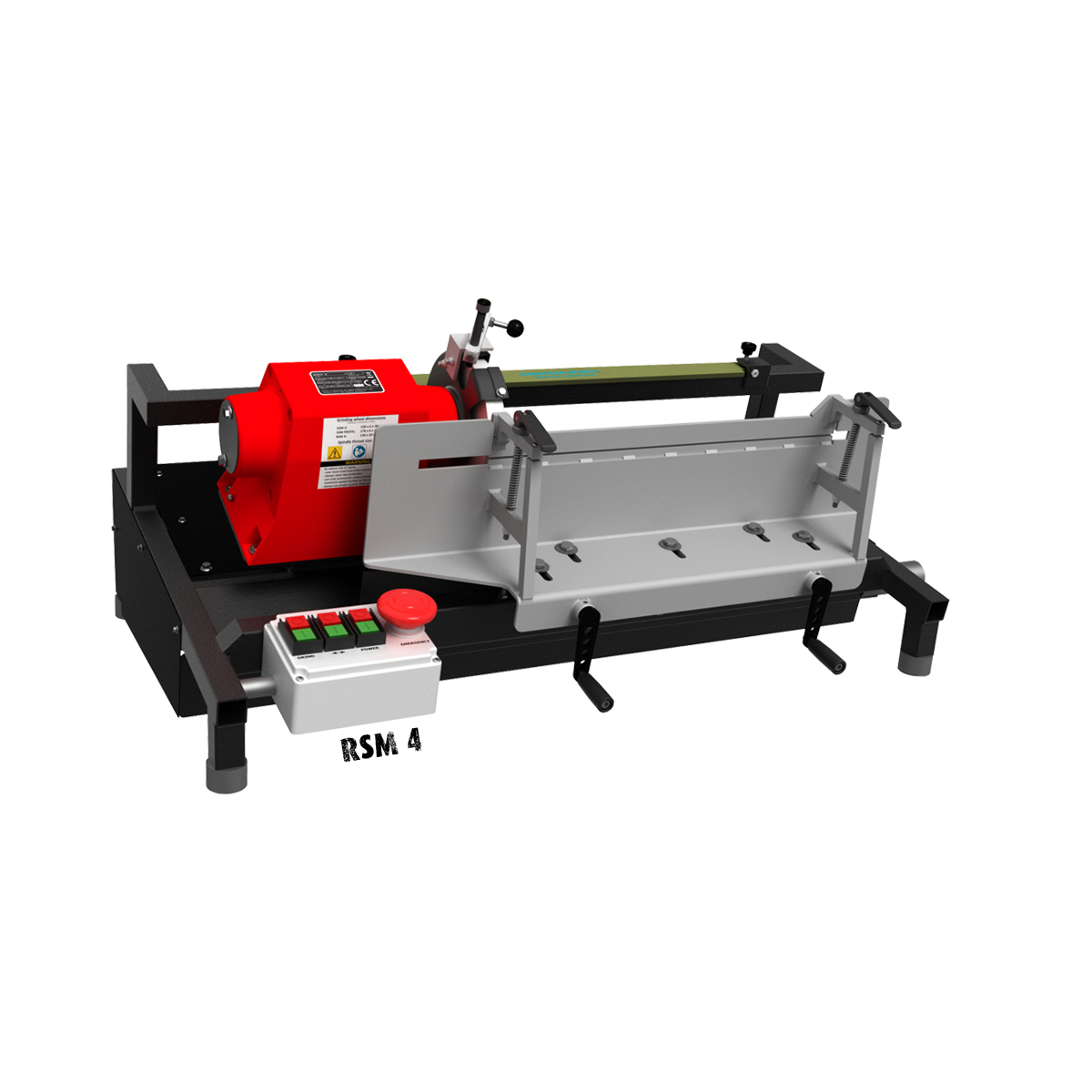

SKATE SHARPENING MACHINE RSM 4
Article: AVSM1006
HEIGHT: 460 mm
WIDTH: 630 mm
LENGTH: 980 mm
WEIGHT: 54,8 kg
POWER: 290W
VOLTAGE: 220-240 V (Transformer 110-120 V)
FREQUENCY: a.c. (1-phase) 50-60 Hz
MAXIMUM RPM: 2800-3400 RPM
GRINDING WHEEL TYPE: 5-4 (Tyrolit) from Zandstra
GRINDING WHEEL DIMENSIONS: 150 * 20 * 20 mm
DIAMOND: Type D-SO or sD-SO from SSM
Made in: EU
It is intended for short track skates, long track skates and tour skates.
Another sports equipment from category
SKATE SHARPENING MACHINE SSM-2 (SSM-2 PRO)
Article: AVSM1002
Height: 320 mm (without holder and extractor tube)
Width: 250 mm (without holder and extractor tube)
Length: 350 mm (without holder and extractor tube)
Weight: 14.8 kg (without holder and extractor tube)
Power: 250 W
Voltage: 220—240 V
Frequency: AC (1—phase) 50—60 Hz
Revolutions per minute: 2800—3400 RPM
Grinding wheel type: Type S—2 from SSM
Grinding wheel dimensions:150 x 6 x 38 mm (diameter x thickness x arbor)
Diamond: For flat sharpening: SD—50, D—80 or SD—80
For hollow sharpening: D—80 or SD—80
SKATE SHARPENING MACHINE SSM-2/SM6
Article: AVSM1011
Voltage: 1 phase 220—240 V 50—60 Hz, power — 250 W
Rotation Speed (Max.): 2800—3400 rpm
Dimensions (LxWxH) 720 x 320x 430 mm (including holder H8 and SM6 for undercutting the blade profile)
Machine weight: 23.2 kg (including holder H8 and SM6 for undercutting the blade profile)
Sharpening disc: Type S—2 from SSM, dimensions: 150 * 6 * 38 mm (diameter * thickness *axis)
Diamond: For groove: D—80 and for flat grinding: D—50, D—80 or D—2000
Dust extractor NQS500 for skate sharpening machine
Article: AVSM1012
For removal of grinding dust and particles we recommend and sell the dust extractor NQS500
