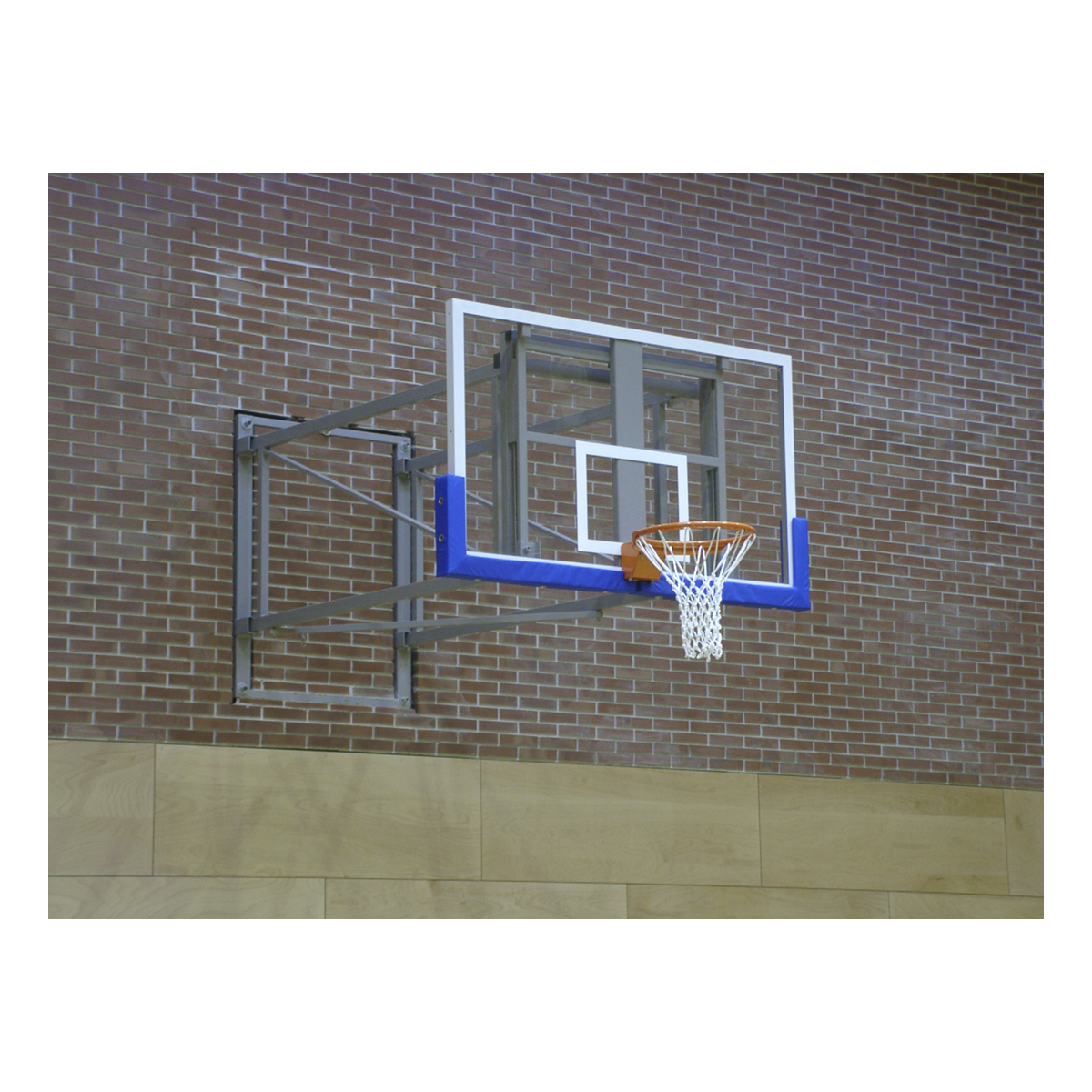

Basketball unit to be mounted on the wall

Art. AVMS15010

The support frame is made of 40 × 40 mm rectangular steel profiles with powder coating, reinforced with 40 × 30 mm braces, and consists of 4 parts. Projection up to 1.65 m.

Description:

The basketball support frame is designed for use in educational institutions and sports clubs for basketball games and training.

The product is made of rectangular steel profiles 40 × 40 mm with powder coating.

The structure is reinforced with braces made of 40 × 30 mm rectangular profile.

The frame consists of 4 parts: a wall mounting frame, 2 projecting frames, and a front frame for backboard attachment.

The 2 projecting frames are connected to the wall frame through hinge joints.

Side folding is provided by a telescopic rectangular profile installed between the lower left corner of the front frame and the lower right corner of the rear frame.

The position of the telescopic profile is locked and released using a spring pin with an eyelet and a release frame with a hook-shaped end.

The projection can be up to 1.65 m and is selected depending on the conditions of the specific installation.

Advantages:

● Steel construction made of 40 × 40 mm profiles.

● Reinforcement with 40 × 30 mm braces.

● Powder coating of metal elements.

● 4-section construction.

● Hinged connection of the projecting frames.

● Side folding with a telescopic profile.

● Locking with a spring pin.

● Projection up to 1.65 m.

● Suitable for educational institutions.

● Suitable for sports clubs.

Package contents:

● Wall mounting frame.

● 2 projecting frames.

● Front frame for backboard attachment.

● Telescopic folding element.

Materials:

● Main structure — 40 × 40 mm rectangular steel profiles.

● Reinforcement — 40 × 30 mm rectangular steel profiles.

● Folding mechanism — telescopic rectangular profile.

● Coating — powder coating.

Dimensions:

● Projection — up to 1.65 m.

Technical specifications:

● Type — basketball support frame for wall mounting.

● Construction — 4-section.

● Feature — side folding.

● Mounting — wall-mounted.

Manufactured in:

● EU
