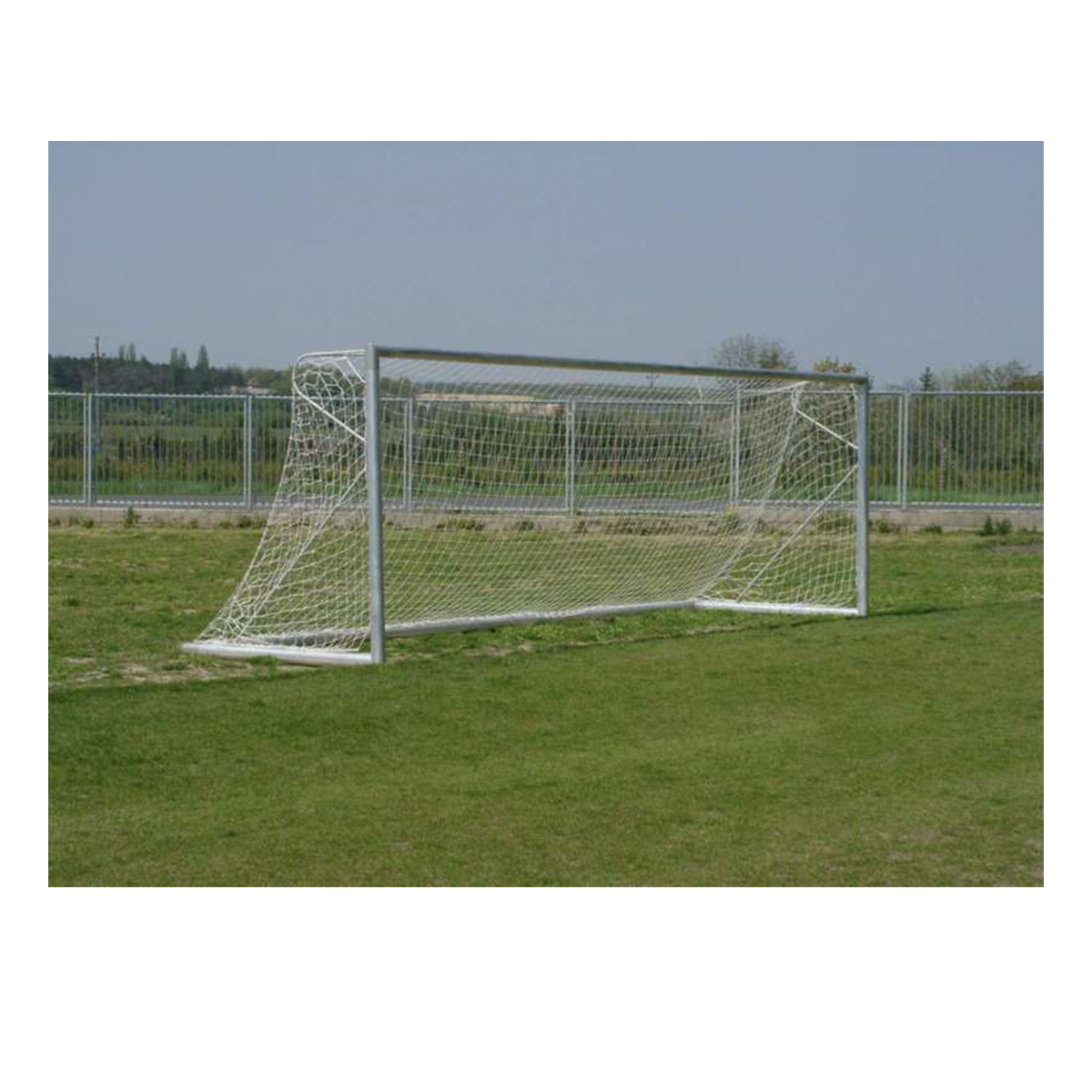

Portable football goal for full-size pitch, aluminium

Art. AVMS13007

Football goal with an oval aluminum profile 120 × 100 mm, natural finish without powder coating, compliant with standard FIFA and UEFA dimensions.

Description:

The portable football goal is designed for use in educational institutions and sports clubs.

The goal frame is made of an oval aluminum profile with dimensions of 120 × 100 mm.

The product surface has a natural finish without powder coating.

In this version, the lower frame elements are made from the same aluminum profile and are welded to the goal frame as a single structure.

The goal is manufactured in accordance with standard FIFA and UEFA dimensions.

The product is equipped with two types of fastening elements.

The supporting brace is made of hot-dip galvanized steel pipe 1" × 2 mm, with drilled flat steel plates welded at a 45° angle at the ends.

The brace stabilizes the side post, and the flat steel plates fit into the outer groove of a special oval aluminum profile.

The second fastening element is located in the inner corners of the goal and serves to support and hold the net away from the frame.

It is made of hot-dip galvanized steel pipe 1" × 2 mm, connected via drilled flat steel plates at the ends, which are attached to the oval aluminum profile.

Advantages:

● Oval aluminum profile 120 × 100 mm.

● Natural finish without powder coating.

● Lower frame elements manufactured as a single welded structure.

● Compliant with standard FIFA and UEFA dimensions.

● Supporting brace made of hot-dip galvanized steel 1" × 2 mm.

● Secondary fastening element for net retention.

● Flat steel plates with drilled holes at the ends.

● Suitable for educational institutions.

● Suitable for sports clubs.

Package contents:

● Goal frame.

● Lower frame elements.

● Supporting brace.

● Net retention fastening element.

Materials:

● Main structure — aluminum oval profile 120 × 100 mm.

● Supporting brace — hot-dip galvanized steel pipe 1" × 2 mm.

● Fastening plates — drilled flat steel.

● Finish — natural aluminum, without powder coating.

Dimensions:

● Frame profile — 120 × 100 mm.

● Brace — 1" × 2 mm.

Technical specifications:

● Type — portable football goal for full-size field.

● Dimension standard — FIFA and UEFA.

● Installation — portable.

● Construction — welded, with integrated lower frame elements.

Manufactured in:

● EU
