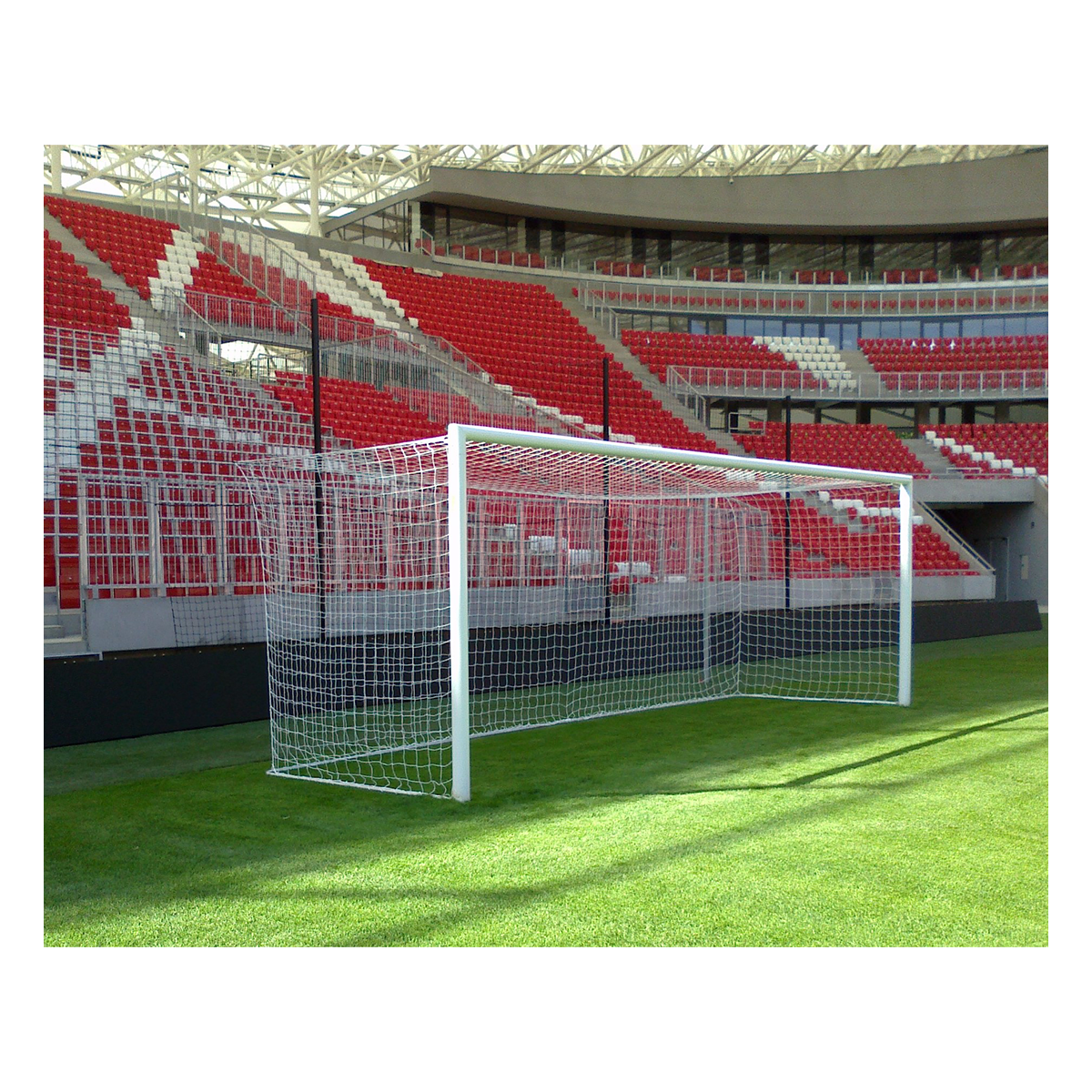

Football goal for full-size pitch, aluminium socketed (with special sockets), profile meeting FIFA and UEFA specifications

Art. AVMS13006

Football goal with an oval profile and special groove connection, frame size 120 × 100 mm, with ground sleeve mounting, compliant with FIFA and UEFA requirements.

Description:

The football goal is designed for use in educational institutions and sports clubs.

The goal frame is manufactured using a standard system with an oval profile and a special groove connection.

The main frame profile size is 120 × 100 mm.

The frame surface has a white powder coating.

At the lower part of the posts, a bottom frame assembly is provided, which is attached via a groove adapter and allows the goal to be tilted towards the frame during lawn mowing.

The mounting assembly consists of three parts: on both sides at the base of the posts there are galvanized elements at a 90° angle made of steel pipe 1" × 2 mm, connected by a rear cross connector made of tapered sections of steel pipe ½" × 2 mm.

The rear connector is fixed to the 90° elements with self-tapping screws.

For installation, the goal is mounted into special hot-dip galvanized ground sleeves with a depth of 50 cm.

The tensioning of the upper part of the net is carried out using a steel pipe 60 × 5 mm, adjustable within a galvanized sleeve, and is supported on both sides of the goal by a steel rod 48 × 4.5 mm with a length of 3 m.

The structure can be transported in a disassembled state.

Advantages:

● Aluminum construction with oval profile and special groove connection.

● Frame size 120 × 100 mm.

● Ground sleeve mounting.

● Sleeve depth 50 cm.

● White powder coating.

● Bottom frame assembly for tilting the goal during lawn mowing.

● Galvanized steel mounting elements.

● Compliant with FIFA and UEFA requirements.

● Demountable structure for transportation.

Package contents:

● Goal frame.

● Bottom frame assembly.

● Side galvanized 90° elements.

● Rear cross connector.

● Special galvanized ground sleeves.

● Net tensioning elements.

Materials:

● Main frame — aluminum, oval profile.

● Coating — white powder coating.

● Side elements and rear connector — hot-dip galvanized steel pipes.

● Sleeves — hot-dip galvanized steel.

● Support rod — steel 48 × 4.5 mm, length 3 m.

Dimensions:

● Main profile size — 120 × 100 mm.

● Sleeve depth — 50 cm.

● Net tensioning pipe — 60 × 5 mm.

● Support rod — 48 × 4.5 mm, length 3 m.

Technical specifications:

● Type — football goal for full-size field.

● Installation — into ground sleeves.

● Standard — FIFA and UEFA.

● Transportation — disassembled.

Manufactured in:

● EU
