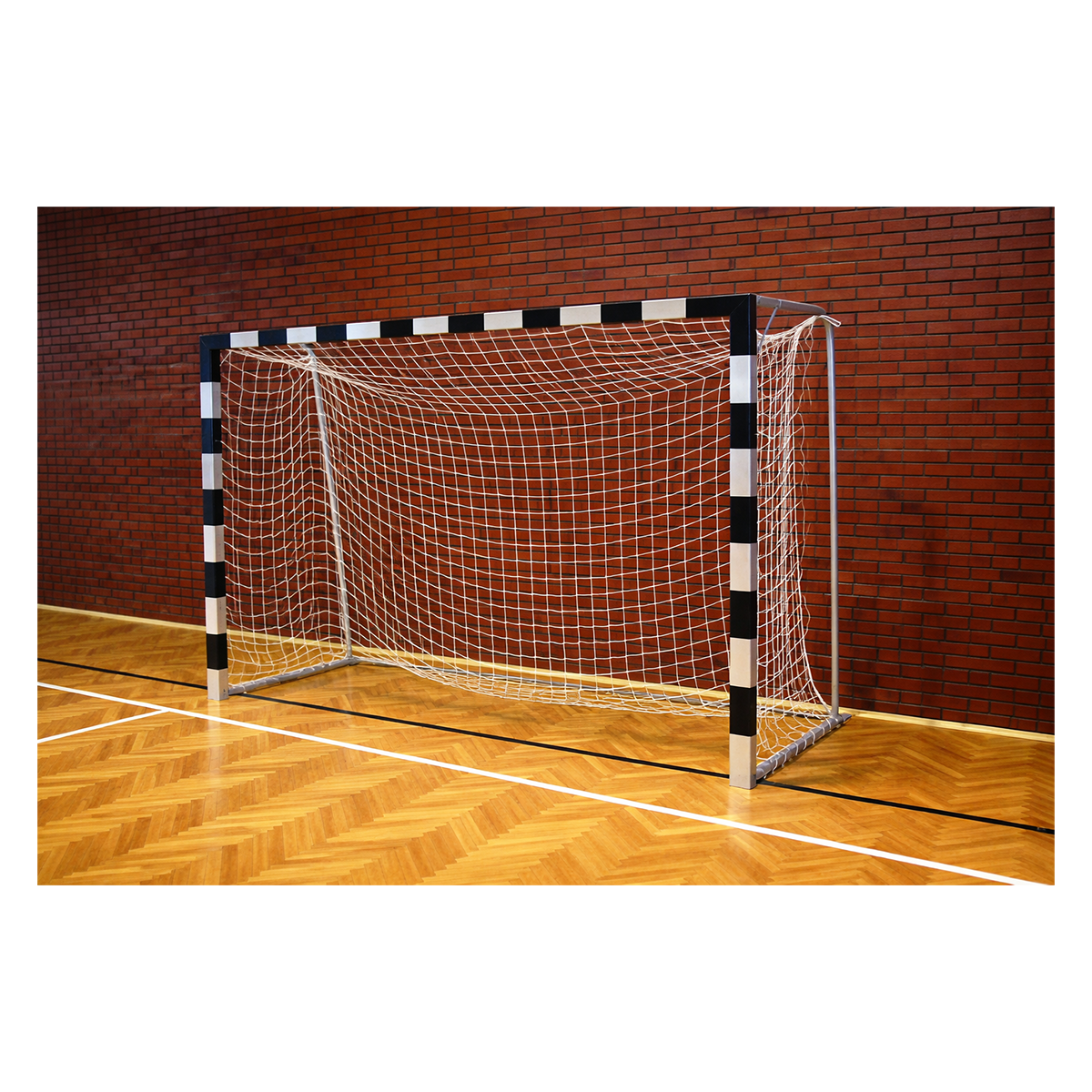

Handball goal with ground sockets, fixed design

Art. AVMS13005

Stationary handball goal made of steel profile 90 × 90 × 4 mm, installed into embedded ground sleeves, with internal dimensions of 3 × 2 m and a demountable construction.

Description:

The handball goal is designed for use in educational institutions and sports clubs.

The product is manufactured as a stationary structure from a rectangular steel profile 90 × 90 × 4 mm.

The internal dimensions of the goal are 3 × 2 m.

The main surface is painted white.

Black stripes are applied with impact-resistant paint, increasing surface durability against impacts.

The side reinforcement is made of a steel pipe 1" × 2 mm and is equipped with two pre-drilled flat steel mounting plates on each side.

The flat ends of the side reinforcement fit into the outer groove of a special aluminum profile.

Fastening is carried out using M8 × 20 bolts and M8 square nuts installed in the inner groove of the aluminum profile.

The rear reinforcement is made of a steel pipe ¾" × 2 mm and is fixed with self-tapping screws.

The structure can be transported in a disassembled state.

Advantages:

● Stationary design with embedded ground sleeves.

● Hot-dip galvanized profile 90 × 90 × 4 mm.

● Internal dimensions 3 × 2 m.

● White base coating.

● Black stripes with impact-resistant paint.

● Side reinforcement made of steel pipe 1" × 2 mm.

● Rear reinforcement made of steel pipe ¾" × 2 mm.

● Demountable structure for transportation.

● Suitable for educational institutions.

● Suitable for sports clubs.

Package contents:

● Handball goal.

● Embedded ground sleeves.

● Side reinforcement.

● Rear reinforcement.

● Fastening elements.

Materials:

● Main structure — hot-dip galvanized steel profile 90 × 90 × 4 mm.

● Side reinforcement — steel pipe 1" × 2 mm.

● Rear reinforcement — steel pipe ¾" × 2 mm.

● Fasteners — M8 × 20 bolts and M8 square nuts.

● Coating — white paint and black impact-resistant markings.

Dimensions:

● Internal dimensions — 3 × 2 m.

● Sleeve — 90 × 90 × 4 mm.

● Side reinforcement — 1" × 2 mm.

● Rear reinforcement — ¾" × 2 mm.

Technical specifications:

● Type — handball goal.

● Construction — stationary, demountable.

● Installation — into embedded ground sleeves.

● Standard — IHF.

Manufactured in:

● EU
