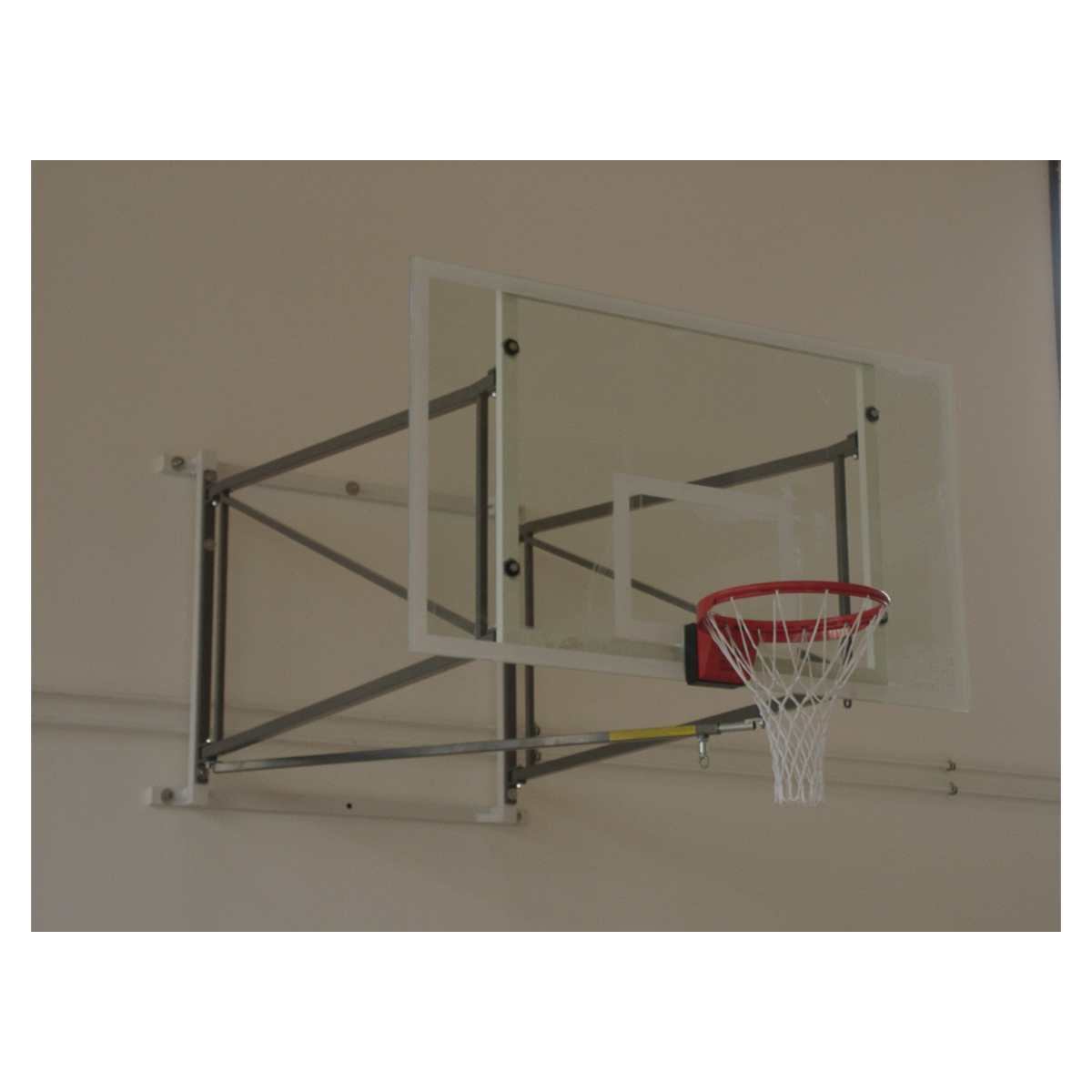

Basketball unit side-folded

Art. AVMS11016

The basketball support frame is made of rectangular steel profiles with a powder-coated finish, with side-folding functionality and an extension of up to 1.65 m.

Description:

The basketball support frame is intended for wall mounting and for use in educational institutions and sports clubs.

The product is made of 40 × 40 mm rectangular steel profiles with a powder-coated finish.

The structure is reinforced with braces made of 40 × 30 mm rectangular profiles.

The frame consists of 4 parts: a wall mounting frame, 2 extension frames, and a front frame for securing the backboard.

The 2 extension frames are connected to the wall frame by hinged joints.

Side folding is provided by a telescopic rectangular profile installed between the lower left corner of the front frame and the lower right corner of the rear frame.

The position of the telescopic profile is locked and released by a spring pin with an eyelet and a release frame with a hook-shaped end.

The overhang can be up to 1.65 m and is selected according to the specific installation conditions.

Advantages:

● Steel construction made of 40 × 40 mm profiles.

● Reinforcement with 40 × 30 mm braces.

● Powder-coated metal elements.

● 4-section construction.

● Hinged connection of the extension frames.

● Side folding with a telescopic profile.

● Locked with a spring pin.

● Overhang up to 1.65 m.

● Suitable for educational institutions.

● Suitable for sports clubs.

Delivery set:

● Wall-mounted folding frame.

● 2 extension frames.

● Front frame for backboard mounting.

● Telescopic folding element.

Materials:

● Main construction — 40 × 40 mm rectangular steel profiles.

● Reinforcement — 40 × 30 mm rectangular steel profiles.

● Folding mechanism — telescopic rectangular profile.

● Finish — powder coating.

Dimensions:

● Overhang — up to 1.65 m.

Technical specifications:

● Type — wall-mounted basketball support frame.

● Construction — 4-section.

● Feature — side folding.

● Installation — wall-mounted.

Manufactured in:

● EU
