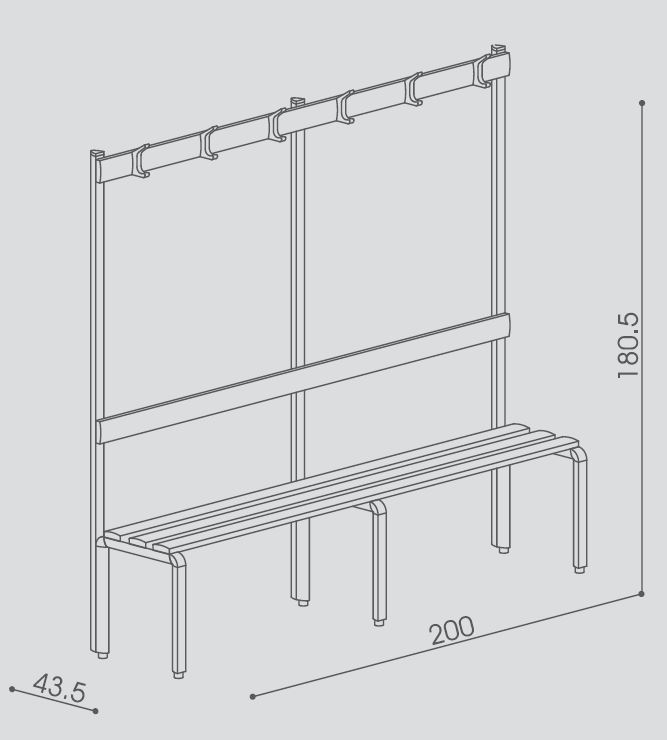

Bench with a back and a hanger series “Q”
Article: AVGS1010
Made in: EU.
Material: aluminium profile , HPL, 12 colors to choose.
Standard measurements:
Height: 180,5 cm
Depth: 43,5 cm
Length: 100, 200 cm.
Construction details
supporting structure is a shaped anodised aluminium profile measuring 60 x 44 mm, with no welding for easy maintenance and longer life
seat slats in anodised aluminium measuring 85 x 20 mm, closed at the front and back (with a minimum thickness of mm 1.5) and reinforced internally by two ribs or solid sheet HPL
bench seat formed with a PVC shaped cover available in grey, light blue and orange
joint in grey nylon reinforced with a steel core which guarantees exceptional strength and flexibility
slats fixed with stainless steel screws
nylon side plugs to close the slats
adjustable steel feet covered in grey nylon
the aluminium used conforms to 7070 alloy in compliance with the UNI-EN 573-3 standard
