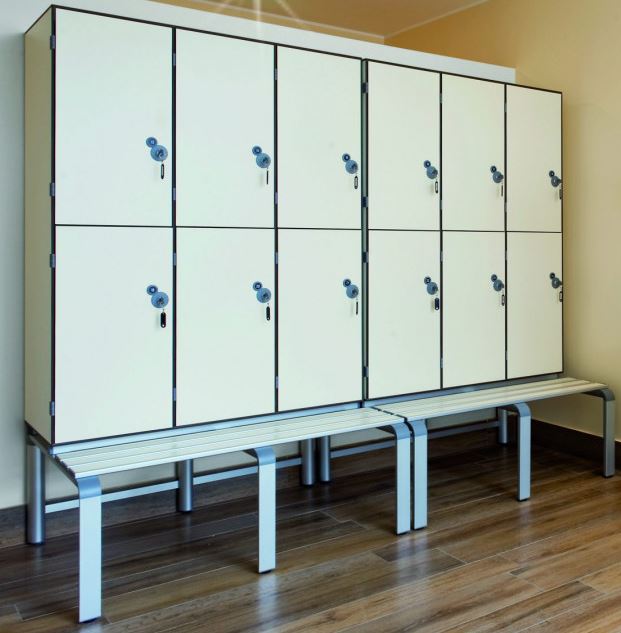

Lockers “Q” series
Article: AVGS1001
Made in: EU.
Material:HPL, 12 colors to choose.
Standard locker measurements:
Height: 30 – 45 – 60 – 90 -180 cm
Width: 30 – 40 – 50 cm
Depth: 50 cm
Locker can consist of 4 cells wide and 6 cells high.
At the base:
- legs 10, 20 cm high;
- bench stand, height: 45 cm, depth: 83 cm.
Construction details:
-8 mm thick stratified laminate panels (back thickness 4 mm)
-surfaces with scratchproof finish
-rounded edges and corners
-hinges in grey reinforced polyamide and AISI 304 steel pin with rotation beyond 180°
-door in 8 mm thick stratified laminate
-lock with nickel plated brass barrel, two keys
-round number plate and internal lock cover rounded and shaped, accident prevention, both in grey reinforced polyamide
-door numbering with round PVC plate and pantographed number (can be applied by the user)
-flat or inclined roof
-coat-hanger rod in 20 mm diameter anodised aluminium with 1 sliding clothes hook in nylon not-removable (just for the solution with height of 180 cm and 90 cm
-rear slits to enable thorough washing, drainage of the liquids and excellent ventilation without affecting the strength of the structure
-fireproof
- supplied unassembled
- installation of electronic locks is possible.
Another sports equipment from category
Hand dryers AVRZ1005
Article: AVRZ1005
Made in EU.
Material: Diecast aluminium Casing Cover
[Air exhaust (m3/h):] 190
[Exhaust temp. (°C):] 20
[Nominal output (Watt):] 910
[Weight (kg):] 4.4
[Dimensions (BxHxT):] 257x289x234 mm
Operating voltage 230V.
Sound level 65 dB.
Air Stream 2000 and MFLW 2 optoelectronic motion detection (range 0–40 cm).
Lockers “W” series
Article:AVGS1004
Made in: EU.
Material: Melamine panels.
Standard measurements:
Height: 205 cm
Width: 40 – 50 cm
Depth: 52 cm
At the base:
— legs 10 cm high;
— bench stand, height: 47 cm, depth: 35 cm.
Locker room bench
Article:locker—room—bench—s07304
Dimension 100x35x45 cm
