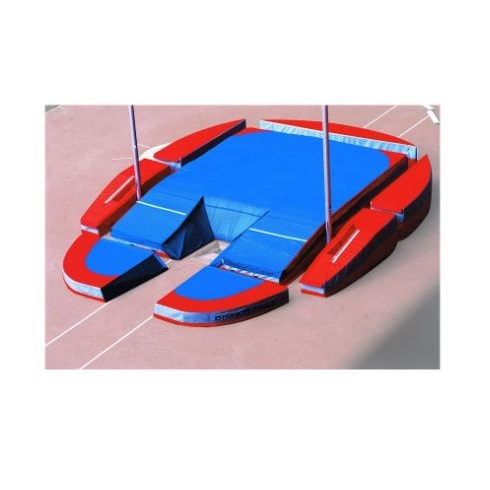

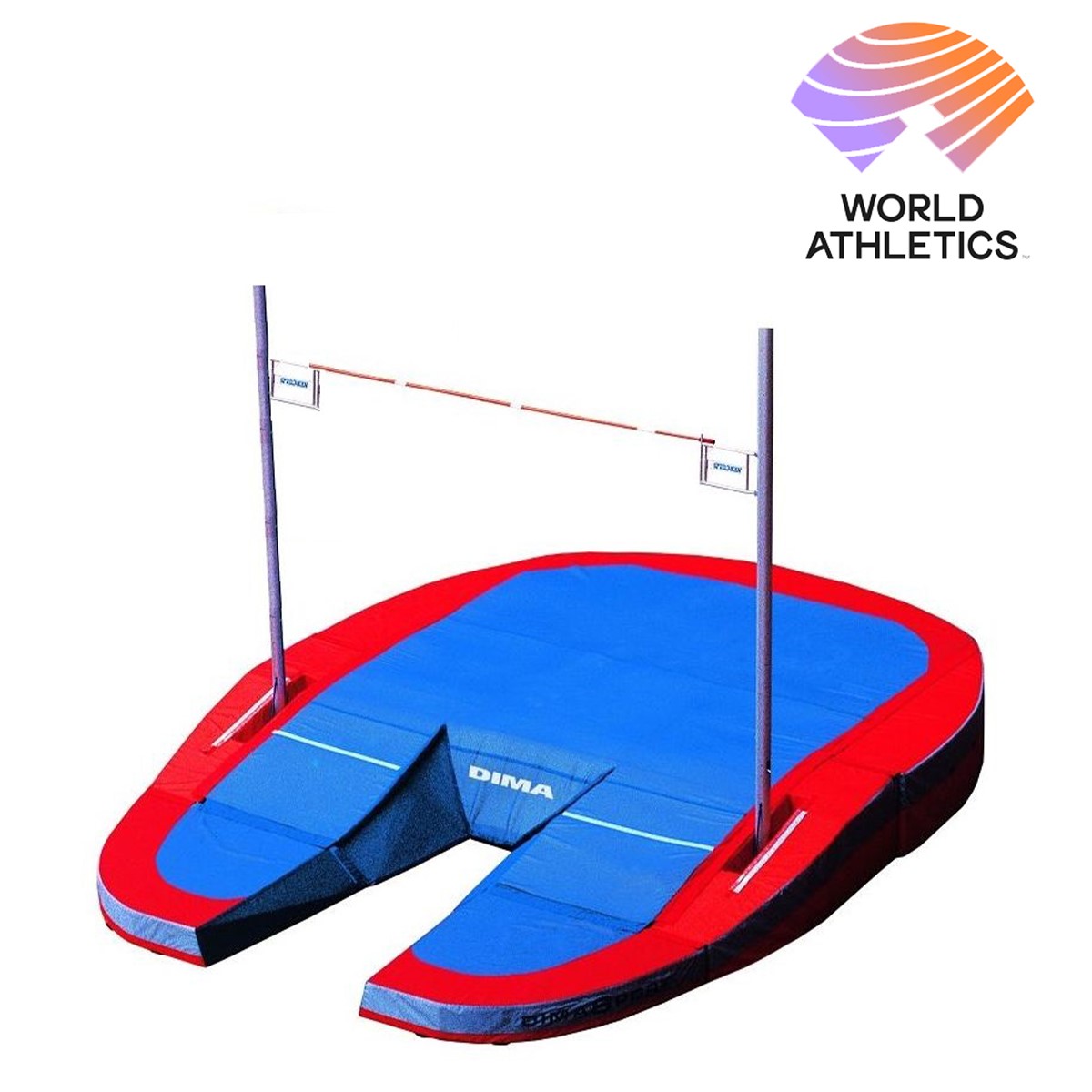

Concept IV Pole Vault Landing System 9,5 × 6,2 × 0,87 / 0,37 m, World Athletics Certified

Concept IV Pole Vault Landing System 9,5 × 6,2 × 0,87 / 0,37 m, World Athletics Certified AVDM1015

Article: AVDM1015

Professional modular pole vault landing area designed for the largest national and international competitions.

Description:

The landing area is a benchmark model among competitive pole vault landing systems and is used at major championships. The product is certified by World Athletics, complies with the requirements of the French Athletics Federation (FFA) and World Athletics standards, and is also certified according to NF EN 12503-2 Type 11.

The rounded shape of the system and two front radius extensions provide the highest level of athlete safety during landing. The integrated protection of the upright bases fully complies with the requirements of the World Athletics regulations.

The construction is based on Airfoam blocks — high-quality foam panels of different densities and load-bearing capacities, ensuring controlled, stable and durable landings for athletes of any weight and from any height.

Each block is enclosed in an individual protective cover and equipped with a fastening system with straps and buckles, allowing the elements to be easily replaced and repositioned. All blocks are equipped with reinforced tear-resistant handles for convenient transportation and installation.

The top of the system is covered with a 7 cm thick protective mat with spike protection, providing an even, comfortable and uniform landing surface. The construction allows the modules to be turned over, reducing wear and extending the service life of the system, as well as facilitating storage, repositioning and dismantling.

Advantages:

● World Athletics certification

● Compliance with FFA and World Athletics requirements

● Benchmark system for major championships

● Rounded shape for enhanced safety

● Two front radius extensions

● Integrated protection of upright bases

● Modular construction with interchangeable blocks

● Airfoam technology for controlled landings

● Blocks can be turned over to extend service life

● Convenient transportation, storage and installation

Included Components:

● Main Airfoam blocks — 1 set

● Front rounded extensions — 2 pcs.

● Upper protective mat with spike protection (7 cm) — 1 pc.

Technical Specifications:

● Type — Pole vault landing area

● Construction — modular, rounded

● Level of use — international / championships

● Placement — indoors / outdoors

● Certification — World Athletics, NF EN 12503-2 Type 11

Materials:

● Filling — Airfoam (foam panels of different densities)

● Block covers — individual, removable

● Block fastening — straps and buckles

● Handles — reinforced, tear-resistant

● Upper surface — spike-resistant fabric

● Side surfaces and base — 650 g/m² PVC

● Perimeter and overlap — spike-resistant fabric

● Marking — white Velcro tape (zero line)

Dimensions:

● Length: 9500 mm

● Width: 6200 mm

● Height: 870/370 mm

Colour:

● Standard colour- blue and red

Production:

● EU

Sport: Athletics

Category: Sports equipment

Subcategory: Landing areas (pole)

Discipline: Pole vault
