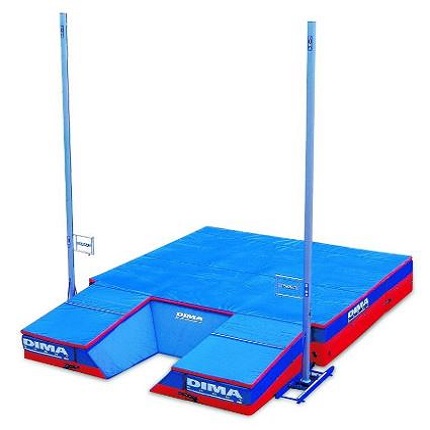

Federal modular pole vault landing system.
Article: AVDM1008
Dimensions: 7.50 X 5.50 X 0.80 / 0.50 m
Colour: Red, blue
Level: F.F.A / I.A.A.F LEVEL 1
Compliance with: NF EN 12503-2 type 11 certified.
The blocks and the upper mat are covered with weather-resistant synthetic material, the upper side of which is covered with a mesh to protect against studded shoes.
The upper mat is 7 cm thick with a cover made of material that protects from studded shoes.
The block filler is made of polyurethane foam with a density of 24 kg / m³.
Each block has its own cover.
Blocks, mats connected by belts.
Font extensions 200 cm.
Made in EU.
Another sports equipment from category
Pole-vault landing system Integral shed
Article: AVDM1165
Basic shed: Dimensions 4,6x5,4 m, fixed/swiveling wheels or on rails, 1 element.
Club shed: Dimensions 6,7x5,9 m, fixed/swiveling wheels or on rails, 2 elements.
Meeting shed: Dimensions 7,3x5,9 m, fixed/swiveling wheels or on rails, 2 elements.
Reversible shed: Dimensions 7,3x5,9 m, fixed/swiveling wheels or on rails, 2 elements.
Federal shed: Dimensions 8x6,5 m, fixed/swiveling wheels or on rails, 2 elements.
International shed: Dimensions 8,4x6,5 m, fixed/swiveling wheels or on rails, 3 elements.
Concept IV shed: Dimensions 10x6,5 m, fixed/swiveling wheels or on rails, 3 elements.
Major Championship shed: Dimensions upon request, fixed/swiveling wheels or on rails, 3 elements.
[Meeting double—front shed:] Dimensions 10,5x5,9 m, fixed/swiveling wheels or on rails, 3 elements, 2 doors.
[International Up and Down double—front shed:] Dimensions 11,4x6,5 m, fixed/swiveling wheels or on rails, 3 elements, 2 doors.
Standard rail to be embedded with sliding cart and cover
Article: AVDM1200
Ideal for indoor use or for multi—sport areas.
Rails made of high quality steel, fitted into an aluminum frame box for a controlled and safe installation. Lid to be covered with synthetic.
Width of the frame : 380 mm
Length of the frame and rail: 1500 mm
Width of rail : 350 mm
The sliding carts can be equipped with either ref. AVDM1028 or AVDM1029 pole—vault uprights.
Made in EU.
Pole vault landing area
Article:AVSS1171
Dimensions: 700x600x80 cm.
