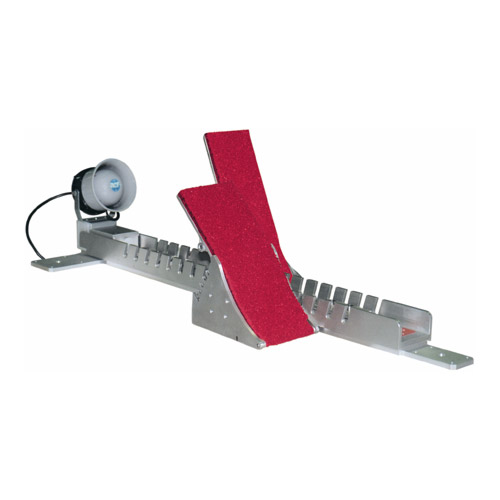

Starting blocks Track & field
Article: 3457.901
Manufacturer: Swiss Timing (Switzerland)
Category: Scoring and Timing systems component
Specifications: Starting blocks with the latest false start detection technology, without any mechanical moving parts, successfully used at the highest levels of competition. The sets include loudspeakers and sets of cables on drums.
The footrest angle can be adjusted to 4 positions between 55° and 73°.
The footrest can be moved horizontally within 16 positions spaced of 35.5 mm giving a maximum distance of 502.5 mm between the front and back feet.
Acoustic signals: False start: ~100 dB
Gun shot : ~90 dB
Connection : 1x Tuchel 4pMT (for thrust sensors and loudspeaker)
Certifications: IAAF Certified Product
General Description:
The Swiss company "Swiss Timing" offers scoring and timing systems for the sports industry. The single features and complete sets strongly depend on the configuration of the sports arena in which they are installed and the level of sporting activities to be conducted.
Track & field starting block supplying as sets of 1, 6, 8 or 10 blocks
These sturdy starting blocks for athletic, made of aluminium and stainless steel, feature an extra large 120 x 263 mm non-slip adjustable footrest
for optimal stability, fully assisting the athletes’ performance. The loudspeaker transmits the starter’s instructions, the gunshot, and
the possible false start signal. The rest pressure is adjustable from 20 to 40 kg. The distance between the feet, as well as the foot's
start angle can be freely adjusted. Another handy feature is the control LED, providing indications during thrust sensor adjustments.
If you want to implement a scoring and timing system - please refer to our managers. They will help you decide on the appropriate equipment and will answer all your questions about options, costs, delivery dates, etc. of the system.
Another sports equipment from category
Article: 3457.900
Manufacturer: Swiss Timing (Switzerland)
Model: ASC3 Automatic Start Control
Category: false start detection system
Specifications:
Suitable for all competition levels, Monitor up to 10 lanes simultaneously.
Acoustic signal in case of false start, Force curve display for each lane. On—line transfer data via a serial line. 115—230 VAC, internal battery (6 hours autonomy). Timer, headset, printer and Electronic starting system: E—gun are included
Sertifcates: IAAF Approved
Article: 3449.961
Manufacturer: Swiss Timing (Switzerland)
Category: Scoring and Timing systems
Specifications:The Gemini is a modular 9—or 6 digit or 12 alphanumerical characters scoreboard that uses LED technology and allows indoor as well as outdoor applications with IP54. The height of LED's 24cm. for digits and 20cm. for alphanumeric display
Housing dimensions/Weight:
type 9 digits: 2400x340x94 mm., / 15,3 kg.
type 6 digits: 1460x340x94 mm., / 10,2 kg.
type 12 alfanum: 2400x340x94 mm., / 15,7 kg.
Certifications:CE and RoHS
Article: 3498.701
Manufacturer: Swiss Timing (Switzerland)
Model: OIT5
Category: part of refereeing and timing systems
Specifications:
— In the free position is open button;
— Connectors such as "banana"
— waterproof and handy with spiral cable 1,25м
— Protection IP67
Certifcates: FINA demand compliance
