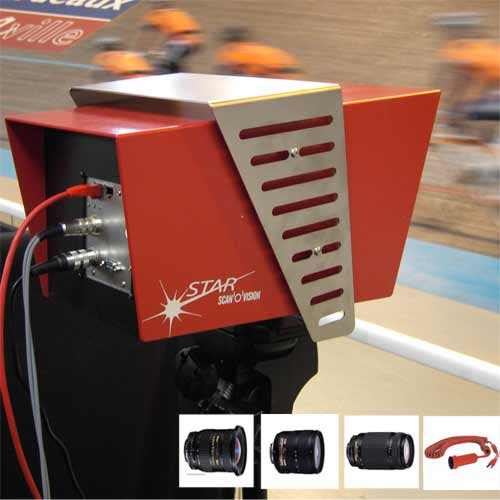

Photofinish colour camera OMEGA SCAN’O’VISION STAR

This equipment is no longer supplied. Please search through the catalog for analogues.

Article: 3434.936

Manufacturer: Swiss Timing

Model: OSV Star

Category: Refereeing and timing systems for athletics

Lens mounting: Nikon type
Temperatures: 0..50°C (working), —20..70°C (storage)
Protection: IP43
Camera dimensions: 360 x 205 x 185mm(LxHxW)
(including handle, without optics)
Weight (camera only): approx. 5 kg (without optics)
Resolution: 2048 pixels
Acquisition speed: 100 to 2000 l/s
Ethernet Gigabit: up to 100mcable

This camera takes up to 2000 shots per second at a high resolution of 2048 pixels
vertical line, and the corresponding time is displayed on each picture. The high
sensitivity of the sensors allows the STAR to work in poor light conditions. High
quality images allow direct export to all print and electronic media. An optional
internal battery offers one hour stand alone operation in case of power failure.
An integrated digital inclinometer helps positioning of the camera. The STAR 210
and 2010 include focus and iris remote control.
This photo finish camera system measures in thousands of seconds the times
at the finish line. It is designed to accomodate a wide range of sports, including
athletics, horse racing, greyhounds, rowing, cycling and speed skating competitions.
optional carrying case with accessories.
Thanks to an exclusive patent, a Spatial
Alignment system for the 1010 and 2010
series allows the camera to be easily aligned
on any finish line. STAR cameras are
self-contained, including power supply,
electronics, connections to the track
(start, ready and finish) and computer
connections through a standard Ethernet
(1Gb) cable.With optional accessories, it
is possible to connect the system to peripheral
devices such as scoreboards and
data handling computers, wind measurement
and false start control devices.
