Modular numeric and alphanumeric scoreboards CALYPSO

Article: 3403.981

Manufacturer: Swiss Timing (Switzerland)

Model: CALYPSO

Category: Part of Refereeing and timing systems for swimming

Specifications:

Modules configuration Dimensions per line : 2400 x 340 x 94 mm

Weight : 18 kg (master), 14 kg (slave)

Display type : 8x 7-segments digits, 2x semicolon, white LED

Digits height : 24 cm

Viewing distance : up to 120 m

Power supply : 115/230 VAC

Power consumption : 50 VA per line (typ.), 90 VA per line (max.)

Data connection : RS422, Quantum and ARES compatible (Bluetooth: optionally)

Operating temperature : 0 to +50°C

Storage temperature : -30 to +85°C

General Description:

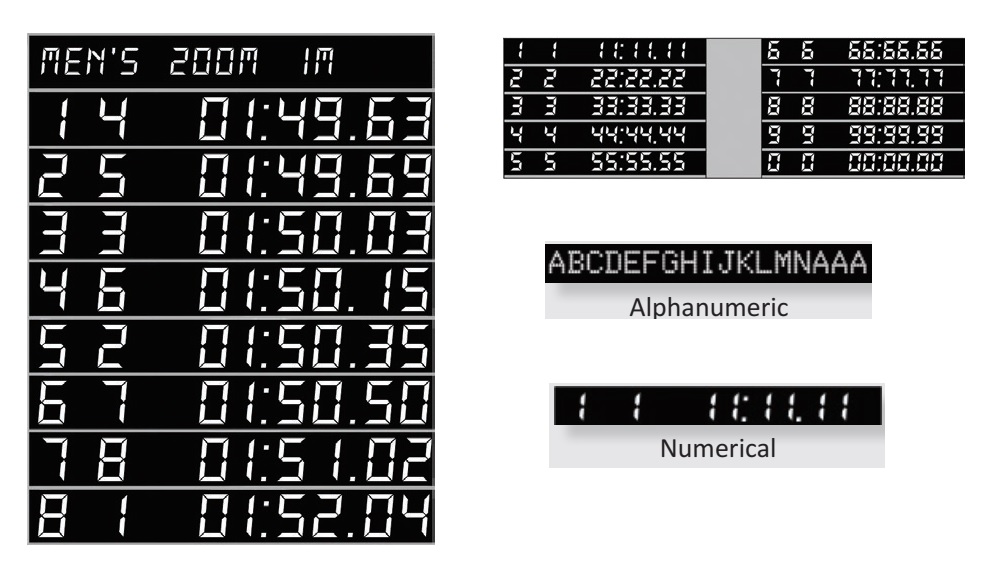

CALYPSO scoreboards utilise advanced, high luminosity LED technology to make it suitable for both indoor and outdoor use. The SCB is fully compatible with Swiss Timing products for such sports as swimming, waterpolo, synchronized swimming and diving. Numeric scoreboards are designed to display the lane, the rank, and timings. The alphanumeric types are designed to display some information about the competition and the current record. Two numeric CALYPSO versions are available: master and slave; the master has an integrated power supply plus driver, and can be used to control up to three slave devices (see diagram overleaf). CALYPSO digits are 24 cm high, each consisting of 150 LEDs, whose brightness automatically adapts to ambient light conditions. This ensures that CALYPSO scoreboards always work at the optimum contrast and brightness to provide best visibility at distances up to 120 m.

The Swiss company "Swiss Timing" offers scoring and timing systems for sports competitions. The single features and complete set for swimming scoring depend strongly on the configuration sports arena in which they are installed and the level of sporting activities to be conducted. If you want to implement a scoring and timing system - please refer to our managers. They will help you decide on the appropriate equipment and will answer all your questions about options, costs, delivery dates, etc. of the system.
