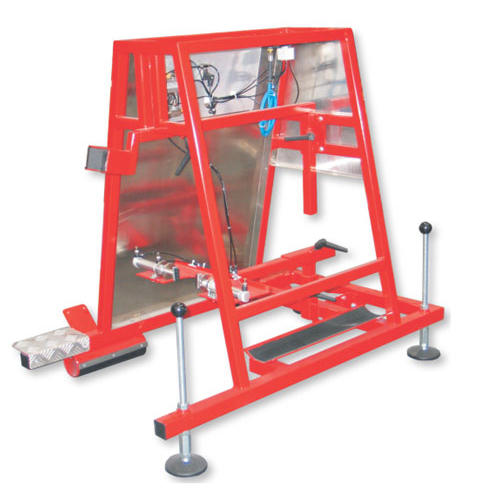

Starting gate cycling
Article: 3358.900
Dimensions: 1110 x 800 x 1000 mm (LxWxH)
Weight: 60.2 kg
Service pressure: 4.5 to 6.0 bars
Supply pressure: 200 bars
Working temperature: 0°to +50°C
Storage temperature: -10° to +35°C
Protection: IP51
Recommended gas: N2 (nitrogen)
Bottle length: up to 70 cm
Diameter: up to 15 cm (recommended: 10 cm)
Bottle capacity: 2 to 10 liters (recommended: ~4 liters)
Fill pressure: 200 bars
Hose diameter: 5.5 mm internal 8 mm external
Manufacturer Swiss Timing (Switzerland)
The system is used by Swiss Timing and UCI official timekeepers worldwide. It is used at cycling events such as Individual and Team Pursuit, 500m time trial, kilometre time trial and team sprint. When linked to the Tracker countdown start device, they ensure a fully automated start sequence. After a programmable countdown time with audible signals, the Tracker perfectly synchronises the start signal with the timing system, the opening of the Starting Gates and the starting sound. The Starting Gate may also be used as a stand-alone training unit using a manual trigger. Swiss Timing Starting Gates are recommended by the UCI for national and international competitions.
Another sports equipment from category
Article: 3498.701
Manufacturer: Swiss Timing (Switzerland)
Model: OIT5
Category: part of refereeing and timing systems
Specifications:
— In the free position is open button;
— Connectors such as "banana"
— waterproof and handy with spiral cable 1,25м
— Protection IP67
Certifcates: FINA demand compliance
Article: 3442.901
Housing width: 640 mm (690 mm with handles)
Housing: 715 x 155 mm (H x D)
Digit height: 26 cm
Support height: adjustable 1040 to 1490 mm
Weight with support: 21.6 kg
Backup battery life: 4 hours
Power supply: 115—230 VAC, 50/60 Hz
Power consumption: 100 VA
Countdown sound: Beep (500 and 1000 Hz)
Countdown start: Bang or beep
Last Lap indication sound: Bell (synthesised)
Volume: Adjustable, up to 102 dB
Integrated keypad: 4 keys (clear, lap +, lap—, bell control)
Operating temperature: 0° to 50°C
Storage temperature: —10° to +50°C
Protection: IP 55
Manufacturer Swiss Timing (Switzerland)
Article: 3358.900
Dimensions: 1110 x 800 x 1000 mm (LxWxH)
Weight: 60.2 kg
Service pressure: 4.5 to 6.0 bars
Supply pressure: 200 bars
Working temperature: 0°to +50°C
Storage temperature: —10° to +35°C
Protection: IP51
